Product Introduction: Offshore Gas Cylinder Rack

I. Product Overview: A "Modular Cylinder Safe Transfer Cabinet" for Offshore Platforms

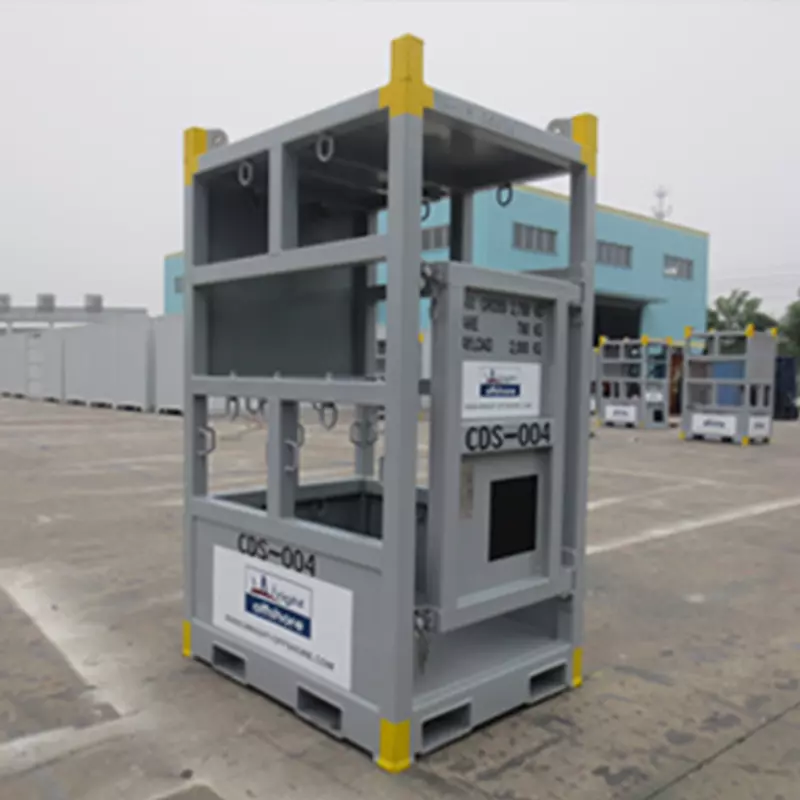

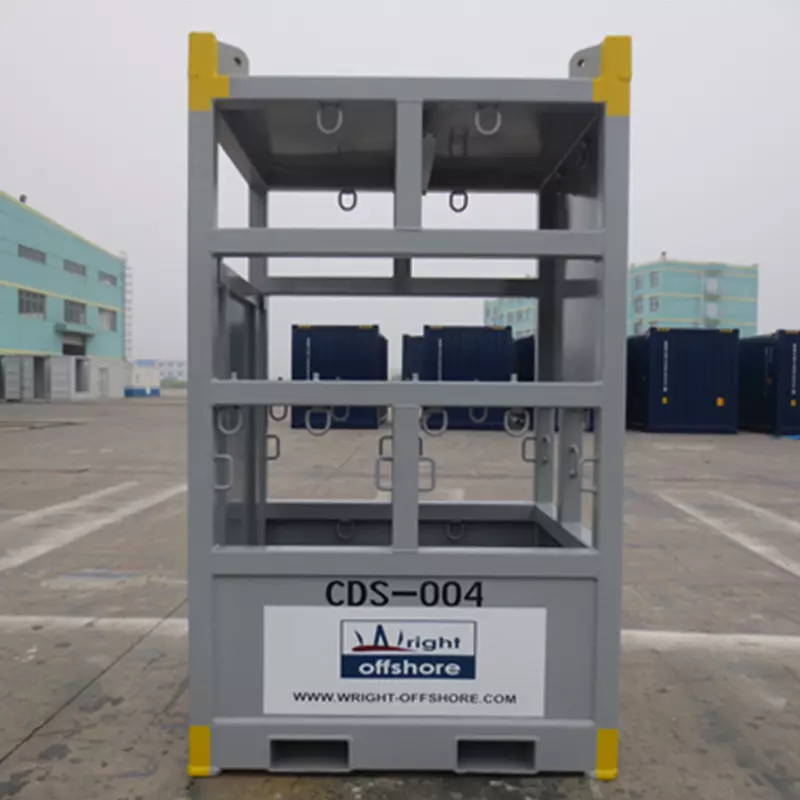

The Offshore Gas Cylinder Rack is a standardised storage and transport unit purpose‑built for gas cylinders on offshore oil platforms and nearshore operation vessels. With its modular multi‑tier design, platform‑grade safety protection, and lightweight heavy‑duty structure, it serves as a safe "mobile storage cabinet" for various high‑pressure gas cylinders and industrial gases on platforms.

• Core Advantages: A compact multi‑tier frame structure safely stores and segregates multiple cylinders, preventing tipping and collision; platform‑grade lifting design directly interfaces with platform cranes and forklifts for safe and convenient transfer.

• Heavy‑Duty Payload: Tare weight of only 650 kg, safely carrying up to 1,000 kg of cylinders, easily meeting daily platform gas requirements.

• Full Protection Design: Open frame with anti‑tip lifting points ensures adequate ventilation and heat dissipation for cylinders while preventing movement during transport, guaranteeing platform gas safety.

II. Product Features and Applications: Safe Tiered Storage, Zero‑Risk Platform Gas Supply

✨ Core Features

• Modular Multi‑Tier Frame Design, High Space Utilisation: An open multi‑tier steel frame structure with adjustable shelves based on cylinder dimensions, enabling segregated cylinder storage, effectively preventing tipping and collision while saving platform deck space.

• Lightweight Heavy‑Duty Structure, Safe Load Capacity: Manufactured from high‑strength low‑alloy steel; tare weight of only 650 kg, gross weight up to 1,650 kg, safely carrying 1,000 kg of cylinders; stable structure with impact and corrosion resistance.

• Platform‑Grade Lifting Standards, Safe and Convenient Transfer: Equipped with dedicated lifting points on top and fork pockets at the base, directly compatible with platform cranes and forklifts for rapid lifting, transfer, and securing – meeting offshore operational workflow requirements.

• Anti‑Tip Lifting Point Design, Worry‑Free Operation: Multiple tie‑down points within the frame allow cylinders to be secured with chains or straps, preventing movement during transport and ensuring platform gas safety.

• Marine‑Grade Anti‑Corrosion Treatment, Rock‑Solid in Harsh Environments: Heavy‑duty anti‑corrosion coating system resists high salt‑fog, high humidity, and strong corrosive conditions, ensuring long‑term resistance to rust and corrosion, extending equipment service life.

🛠️ Typical Application Scenarios

• Storage and Transfer of Industrial Gas Cylinders on Offshore Platforms: Centralised storage and transfer of oxygen, nitrogen, argon, acetylene, and other industrial gas cylinders on drilling and production platforms.

• Gas Supply on Nearshore Operation Vessels: Storage and transfer of cylinders for welding, cutting, and purging operations on engineering vessels and construction platforms.

• Cylinder Transfer at Ports and Terminals: Transfer of cylinders between ports and platforms, enabling direct crane‑to‑vessel loading for efficient transfer.

• Emergency Response Operations: Temporary storage and rapid transfer of cylinders during offshore emergency response and maintenance operations, ensuring gas supply for frontline activities.

III. Detailed Product Specifications: Every Detail Designed for Cylinder Safety

IV. Manufacturing Equipment, Quality Certifications, and Customer Case Studies

🏭 Production Equipment and Processes
We utilise a marine‑engineering‑grade cylinder rack production line, using high‑strength low‑alloy steel. Critical welds undergo 100% ultrasonic flaw detection. Before delivery, each unit is subjected to rigorous load testing, lifting impact testing, and salt‑fog corrosion testing to ensure reliability and safety in harsh offshore environments.

📜 Authoritative Quality Certifications
The product is certified under ISO 9001 Quality Management System. Additional marine engineering equipment certifications can be provided upon request, meeting safety acceptance standards for offshore platforms and vessels, ensuring compliance with offshore operational safety regulations.

📦 Customer Case Studies

• Supplied customised offshore gas cylinder racks to a domestic offshore oil platform for industrial cylinder storage and transfer; the modular design has earned long‑term use on the platform.

• Partnered with nearshore engineering vessel companies to customise anti‑tip cylinder racks, adapted to vessel operational requirements with excellent corrosion resistance, significantly improving vessel operational efficiency.

• Provided standard cylinder racks to a port terminal for offshore cylinder transfer, enabling direct crane‑to‑vessel loading for efficient transfer and reducing customer operational costs.

V. Comprehensive After‑Sales Service – Worry‑Free Throughout

• Customisation Services: Tailor shelf layouts, tie‑down points, corrosion protection levels, and other personalised features based on cylinder dimensions and quantities.

• Full Factory Inspection: Each cylinder rack is delivered with complete test reports covering load, lifting, and anti‑corrosion performance, along with a certificate of conformity and quality guarantee.

• Nationwide Delivery Service: We support on‑site delivery to ports, terminals, and platforms, with assistance in lifting, placement, and usage guidance.

• Warranty and After‑Sales: The main frame structure is covered by a 1‑year warranty; free repairs for non‑human‑induced quality issues; lifelong technical consultation and maintenance advice are provided.

VI. Professional Consultation – Service Excellence

💬 Professional Consultation Services
With years of experience in marine engineering equipment customisation, our professional team offers:

• Scenario Suitability Assessment: Recommending the optimal cylinder rack solution based on your cylinder dimensions, quantities, and platform space.

• Customised Solution Design: Providing one‑stop cylinder rack design services, from frame structure, shelf layouts, and corrosion protection levels to lifting configurations.

• Usage and Maintenance Guidance: Offering full‑process advice on lifting, securing, and anti‑corrosion maintenance tailored to offshore operational needs.

For a complete technical data sheet or a customised solution, please feel free to contact us. We provide a one‑stop solution for your offshore cylinder safety storage challenges!
